Home/Products/Electrical/Modular Contactor - TeSys - GC - AC-7a - 40A 2NO - 240VAC 50Hz
Schneider Electric TeSys GC4020M6 40A modular contactor with 2NO contacts for DIN rail mounting.
Schneider Electric

Modular Contactor - TeSys - GC - AC-7a - 40A 2NO - 240VAC 50Hz

The TeSys GC4020M6 by Schneider Electric is a high-performance modular contactor designed for seamless integration into distribution panels. Engineered for AC-7a applications, this 40A device is the perfect solution for switching heating, lighting, and ventilation loads in residential, commercial, and industrial buildings.

10% OFF142 SAR
146.97 SAR
(Incl. VAT)
127.80 SAR(Excl. VAT)
In Stock
1

Specifications

Parameter

Specification Details

Utilization Category

AC-7B, AC-7A

Poles Description

2P

Power Pole Contact Composition

2 NO

[Ue] Rated Operational Voltage

<= 250 V AC

[Ie] Rated Operational Current

40 A AC-7A / 15 A AC-7B

Operating Position

30°/vertical

Control Circuit Type

AC at 60 Hz

[Uc] Control Circuit Voltage

220...240 V AC 60 Hz

[Uimp] Rated Impulse Withstand Voltage

4 kV

[Ith] Conventional Free Air Thermal Current

40 A (at 50 °C) for power circuit

Irms Rated Making Capacity

120 A at 400 V AC for power circuit (IEC 61095)

Rated Breaking Capacity

120 A at 400 V for power circuit (IEC 61095)

[Icw] Rated Short-time Withstand Current

320 A 40 °C - 10 s / 100 A 40 °C - 30 s

Associated Fuse Rating

40 A gL at <= 440 V for power circuit

Average Impedance

2 mOhm - Ith 40 A 50 Hz for power circuit

[Ui] Rated Insulation Voltage

500 V (IEC 61095) / 500 V (VDE 0110)

Electrical Durability

100,000 cycles (AC-7A and AC-7B)

Mechanical Durability

1,000,000 cycles

Operating Time

10...25 ms opening / 10...30 ms closing

Maximum Operating Rate

300 cyc/h 50 °C

Inrush Power (VA)

34 VA 50 Hz (at 20 °C)

Hold-in Power Consumption (VA)

4.6 VA 50 Hz (at 20 °C)

Heat Dissipation

1.6 W at 50/60 Hz

Standards

IEC 60947-5, IEC 61095

Mounting

Clip-on mode for DIN rail

Tightening Torque

Control: 0.8 N.m / Power: 2 N.m

Additional Details

Key Technical Features

High Load Capacity: Rated for 40A (AC-7a), making it suitable for high-power non-inductive loads.

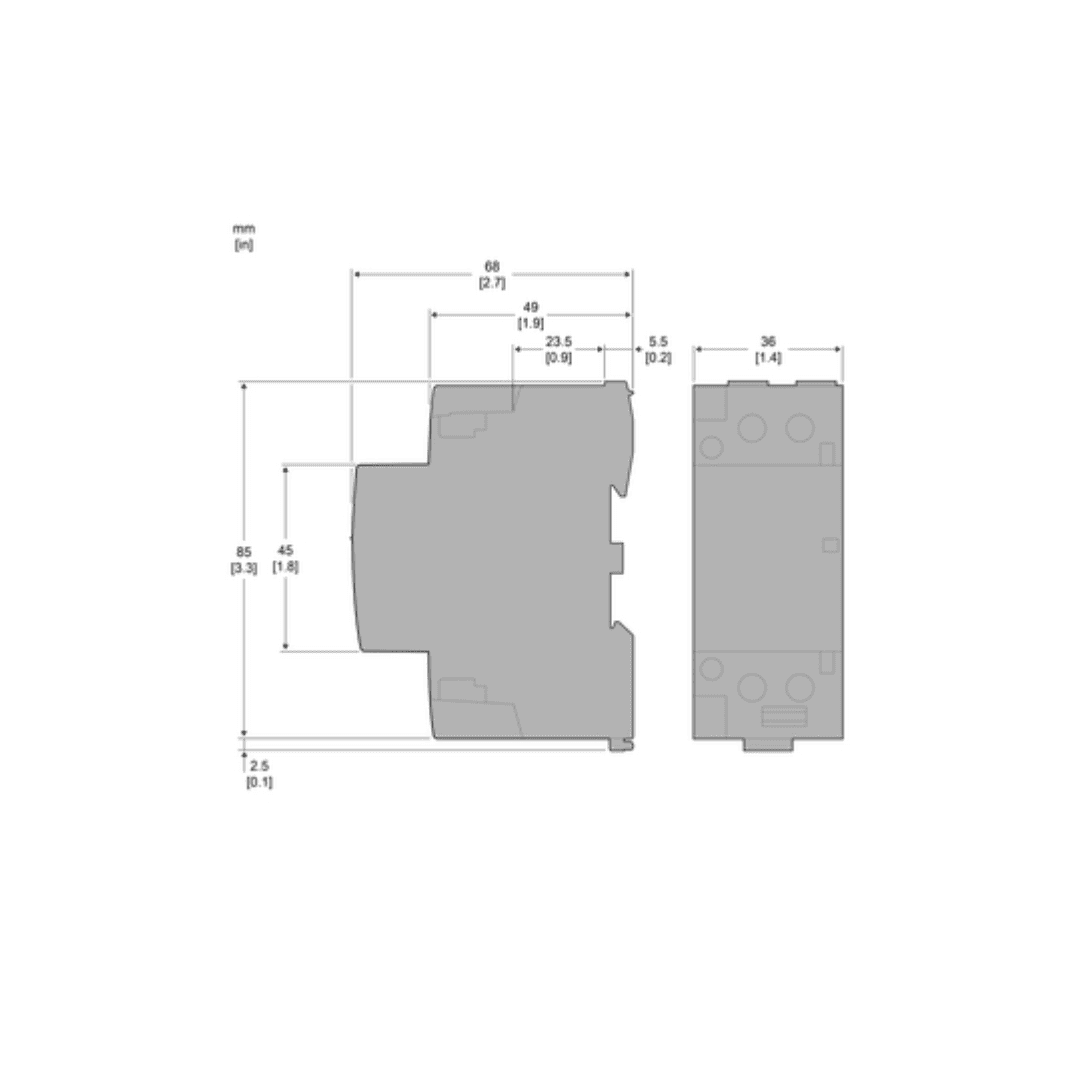

Modular Design: Compact width (36mm) allows for efficient use of space in consumer units and distribution boards.

Standard Coil Voltage: Optimized for 220V to 240V AC 50Hz power supplies.

Contact Configuration: Equipped with 2 NO contacts for straightforward power switching.

Easy Installation: Standard DIN rail mounting for quick setup and maintenance.

Safe & Durable: Compliant with international safety standards for modular electrical equipment.

Recommended Applications

HVAC Systems: Controlling electric heaters, fans, and ventilation motors.

Lighting Control: Managing large-scale LED or incandescent lighting banks.

Water Heating: Switching industrial and domestic water boilers.

Building Automation: Integration into smart panel systems for automated load management.
