Disabled Persons Toilet Alarm System (DPTA-KIT2) – BS8300 Compliant 4-Zone Expandable Kit
The DPTA-KIT2 is a high-reliability emergency assistance alarm system designed specifically for disabled persons' dwellings and public accessible toilets. Fully compliant with BS8300 requirements, this system ensures that help is only a pull-cord away. The kit is centered around a sophisticated 4-zone control panel (DPTA-CP). While it serves as a single-zone solution out of the box, it is easily expandable to cover up to four independent toilets or zones, providing a scalable safety network for clinics, office buildings, and retail spaces. The system creates an integrated loop between the user in distress and the responders via a coordinated network of pull cords, reset points, and indicators.
Please add this item to your quote request to receive pricing information.
Specifications
Parameter | Specification Detail |
Mains Input Voltage | 230VAC 50Hz/60Hz |
Quiescent Standby Current | 3mA DC (Buzzer Muted) |
Maximum Overall Supply Current | 250 mA DC (Maximum) |
Zone Capacity | 1 Zone (Standard) / 4 Zones (Maximum) |
Operation | 3-Wire System |
Additional Details
Key Features & Benefits
Standards Compliant: Designed to meet the rigorous safety requirements of BS8300 for accessible building design.
Scalable Architecture: Supporting up to 4 zones, allowing for easy expansion as your facility grows.
Efficient Installation: Features a simple 3-wire operation for all field devices, significantly reducing labor time and wiring complexity.
Dual Alert System: Equipped with on-board buzzers in both the Control Panel and the Remote Indicator to ensure alarms are heard immediately.
Clear Visual Feedback: The Control Panel features Zone LED indication for instant fault diagnosis and alarm location identification.

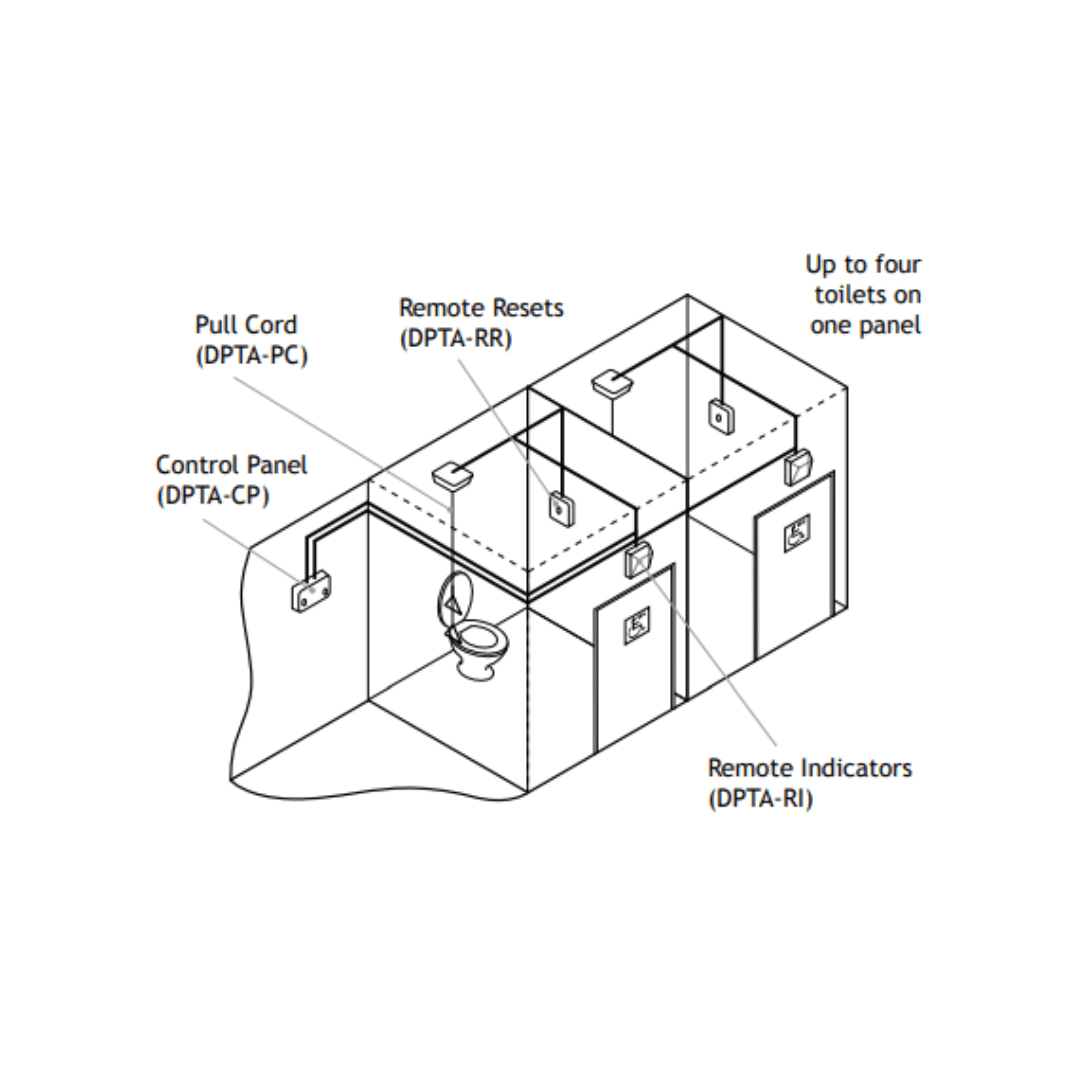

Comprehensive Device Support: Includes a full range of field devices: Pull Cord (DPTA-PC), Remote Reset (DPTA-RR), and Remote Indicator (DPTA-RI).
The Kit 2 Includes
DPTA-CP (CONTROL PANEL 4-ZONES) - 1 PC
DPTA-RI (REMOTE INDICATOR) - 2 PCS
DPTA-RR (REMOTE RESET) - 2 PCS
DPTA-PC (PULL CORD) - 2 PCS
