Samnan Smart Operation Package: 0.5 HP Pump & Auto Pressure Controller | Najoom Al Falah KSA

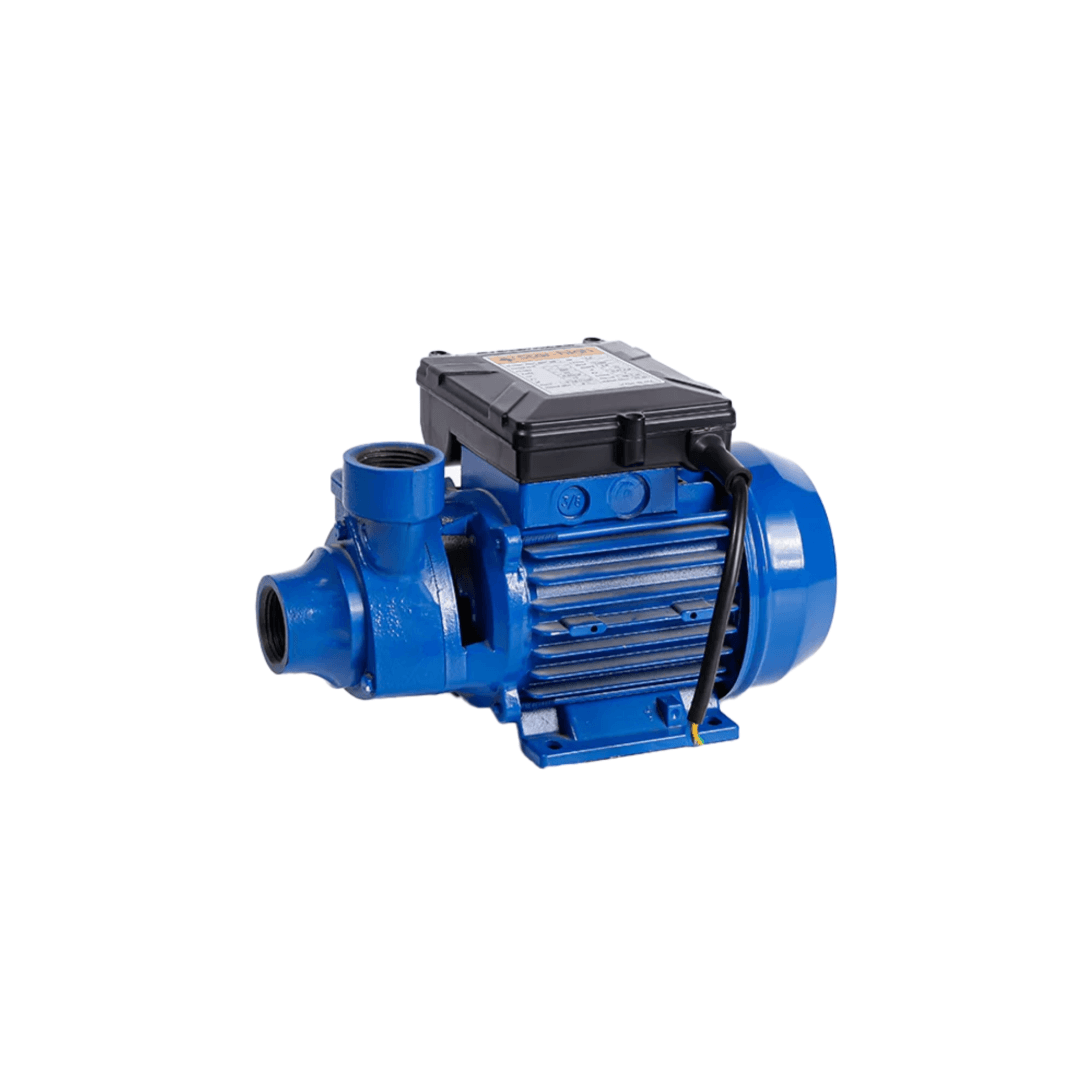

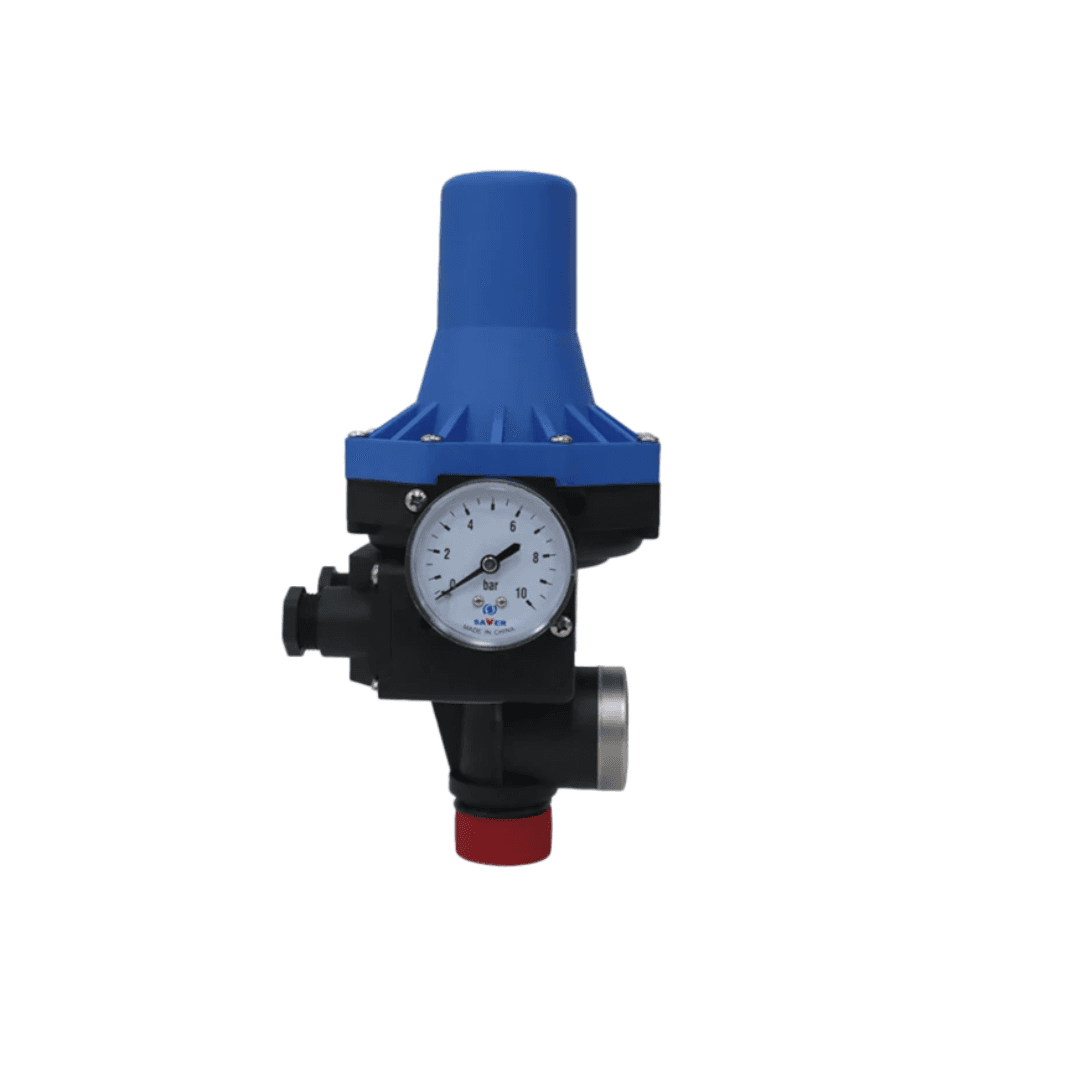

The Complete Automated Solution for Reliable Water Pressure The Samnan Smart Operation Package is an all-in-one bundle designed to perfectly boost and manage water pressure from rooftop tanks throughout your internal network. This kit combines the robust Samnan Star High Dynamo (0.5 HP) with the highly responsive Samnan Automatic Pressure Controller, delivering a seamless, automated water distribution experience for residential, agricultural, and light commercial applications. The 0.5 HP pump is built for longevity, featuring a high-quality cast-iron body with a thermal coating and a corrosion-resistant brass impeller. It provides exceptional water pressure with a maximum head of 34 meters and a flow rate of 2.3 m³/h. Paired directly with the pump, the Automatic Pressure Controller acts as an intelligent switch. It instantly detects when a water outlet is opened or closed, starting or stopping the dynamo automatically to maintain target pressure. Crucially, it features built-in dry-run protection, which immediately shuts off the pump if the water supply runs out, preventing motor burnout and costly damage.
Please add this item to your quote request to receive pricing information.
Specifications
Feature | Specification Details |
Package Name | Samnan Smart Operation Package |
Pump Model | Samnan Star High Dynamo (Small Impeller) |
Pump Power | 0.5 HP |
Maximum Head (Height) | 34 Meters |
Maximum Flow Rate | 2.3 m³/h |
Pump Material | Cast-Iron Body (Thermal Coated) & Brass Impeller |
Suction / Discharge Size | 1 Inch / 1 Inch |
Max Water Temperature | 60°C |
Voltage / Frequency | 220V / 60Hz |
Pump Protection Rating | IP44 |
Controller Type | Samnan Automatic Pressure Controller (Chinese) |
Controller Features | Auto Start/Stop, Dry-Run Protection, Pressure Sensor |
Controller Compatibility | 1/3 HP, 0.5 HP, 3/4 HP, and 1 HP Pumps |
Additional Details
Key Features & Advantages
Fully Automated Operation: The pressure controller automatically starts the pump when a tap is opened and shuts it off when closed, ensuring instant pressure on demand.
Smart Dry-Run Protection: The controller safeguards the pump motor by stopping operation immediately if no water is detected in the pipeline.
Powerful Distribution: The 0.5 HP dynamo pushes water up to a 34-meter head, easily accommodating multiple taps running simultaneously at a 2.3 m³/h flow rate.
Premium Construction: The pump features a heavy-duty cast-iron body with an IP44 protection rating and a highly durable brass impeller.
High-Temperature Ready: Designed to operate efficiently and safely even with water temperatures reaching up to 60°C.
Space-Saving Design: Both the compact small-impeller pump and the controller fit easily into tight installation spaces.
